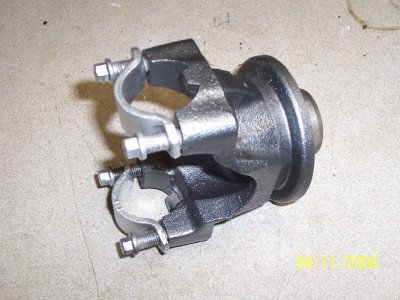

10 Bolt 7.6 GM
 Metric yoke |
 10
bolt cover |

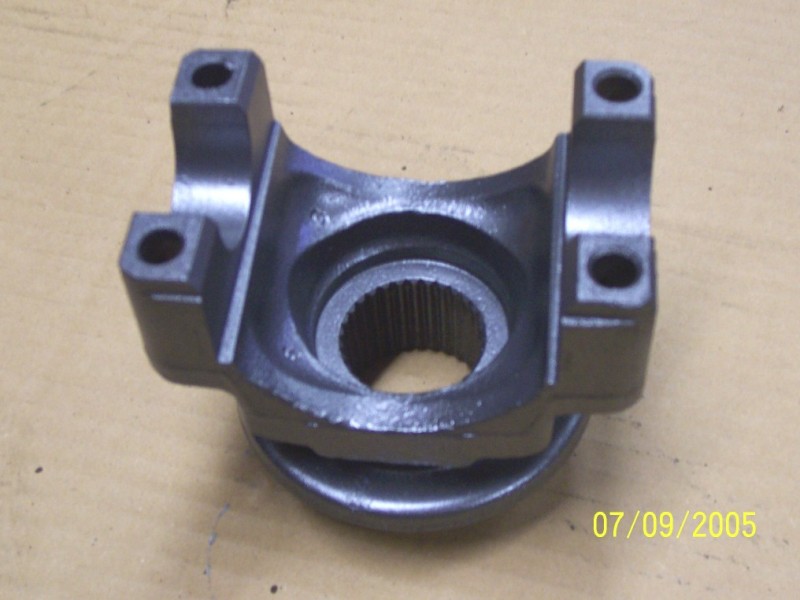

 1350
yoke |
| Ring Gear Diameter | 7.6 GM |
| Ring Gear Bolt Size | 7/16 Left Hand Thread |
| Axle Spline | 28 c-clip & bolt in |
| Pinion Spline | 27 |
| Pinion Diameter | 1.438 |
| Axle Shaft Diameter | 1.40 |
Supported Cars
| Car | Year |
| Camaro
/ Trans Am / FireBird |
1990-2003 |
| Impala / Caprice | 1990-1996 |
| S-10 / GMC Sonoma | 1990- 2003 |
Rebuild Kit
| Part | Part Number |
| Carrier Bearing | LM501349 |
| Carrier Bearing (Race) | LM501314 |
| Inner Pinion Bearing | M89249 |
| Inner Pinion Bearing (Race) | M89210 |
| Outer Pinion Bearing | M86649 |
| Outer Pinion Bearing (Race) | M86610 |
| Pinion Seal | 8610 or 8611N |
Mega Axle Bearing Kit
| Part | Part Number |
| Axle Bearing (C-Clip) | 5707 |
| Axle Seal (c-clip) | 8660S |
