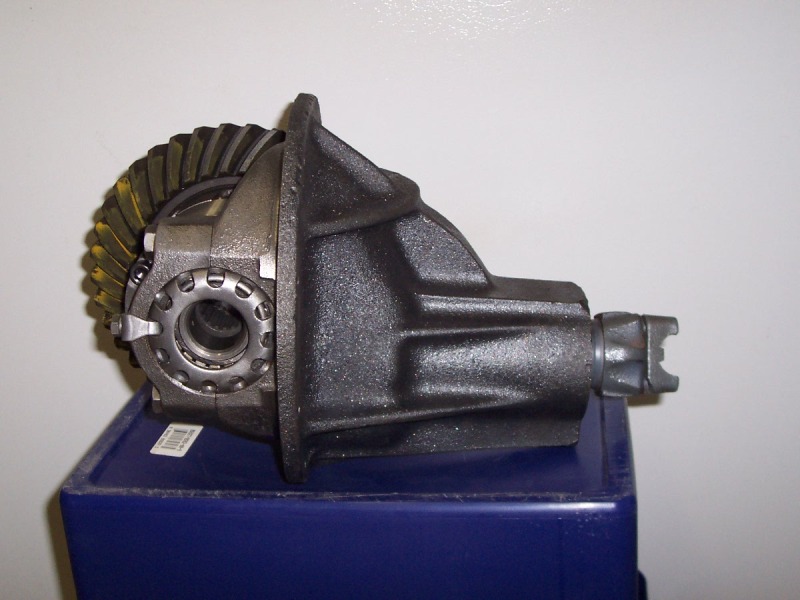

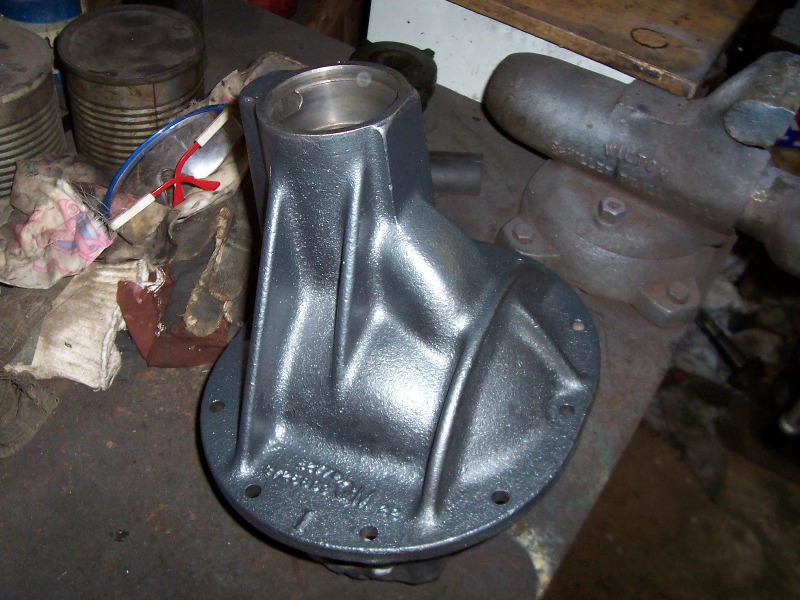

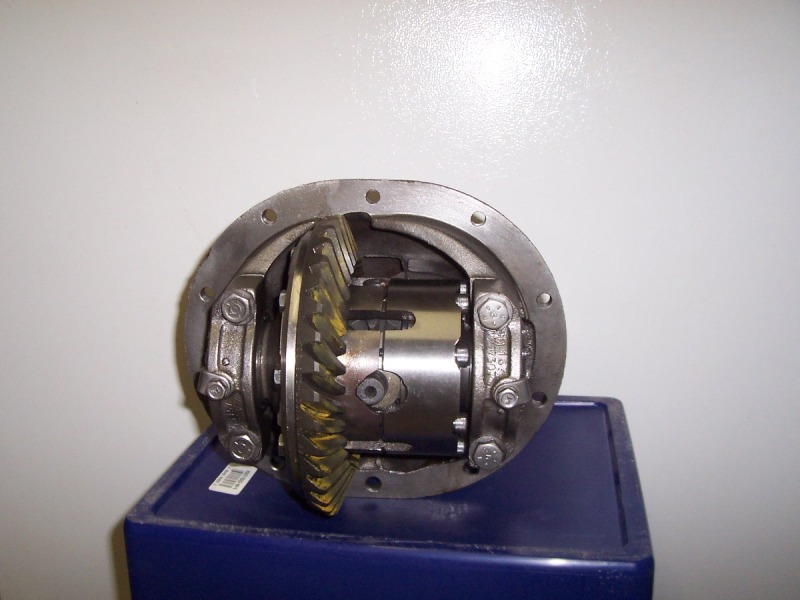

10 Bolt 8.2 Chevy Dropout
 |
 |
 |
| Ring Gear Diameter | Chevy 8.2 Drop Out |
| Cover Bolt Count | 10 |
| Ring Gear Bolt Count | 10 |
| Carrier Ratio break | 3.08 - 3.70 / 4.10 and up |
| Ring Gear Bolt Size | 3/8 Fine Right Hand Thread |
| Axle Spline | 17 spline Bolt In Axle |
| Pinion Spline | 17 |
| Pinion Diameter | 1.438 / 1.376 nova |
| Axle Shaft Diameter | 1.382 |
Supported Cars
| Car | Year |
| Nova / chevy II | 62-63 |
| Corvette | 56-62 |
| Chevrolet /Impala / Bellaire | 55-64 |
Rebuild Kit
| Part | Part Number |
| Carrier Bearing 55-56 | 17887 |
| Carrier Bearing (Race) 55-56 | 17831 |
| Carrier Bearing 57-64 | LM603049 / SET45 NOVA |
| Carrier Bearing (Race) 57-64 | LM603014 / SET45 NOVA |
| Inner Pinion Bearing | HM89449 / HM88649 NOVA |
| Inner Pinion Bearing (Race) | HM89410 / HM88610 NOVA |
| Outer Pinion Bearing | HM88547 / HM86649 NOVA |
| Outer Pinion Bearing (Race) | HM88510 / HM86610 NOVA |
| Pinion Seal | 6818 / 8611 NOVA |
Mega Axle Bearing Kit
| Part | Part Number |
| Axle Bearing 55-56 | RW507ER |
| Axle Seal 55-56 | 5458 |
| Axle Bearing 57 | RW307R |
| Axle Seal COMBINED IN BEARING 57 | N/A |
| Axle Bearing 58-64 | RW607NR |
| Axle Seal 58-64 | 5573S |
