10 Bolt Chevy 8.2 (8.125)
|
|
|
 |
| Ring Gear Diameter | 8.125 AKA Chevy 8.2 |
| Cover Bolt Count | 10 |
| Ring Gear Bolt Count | 10 |
| Carrier Ratio Break | 2.56- 2.73 / 3.08 - 4.56 and up |
| Ring Gear Bolt Size | 3/8 Fine Right Hand Thread |
| Axle Spline | 28 C-clip 45 degree splines |

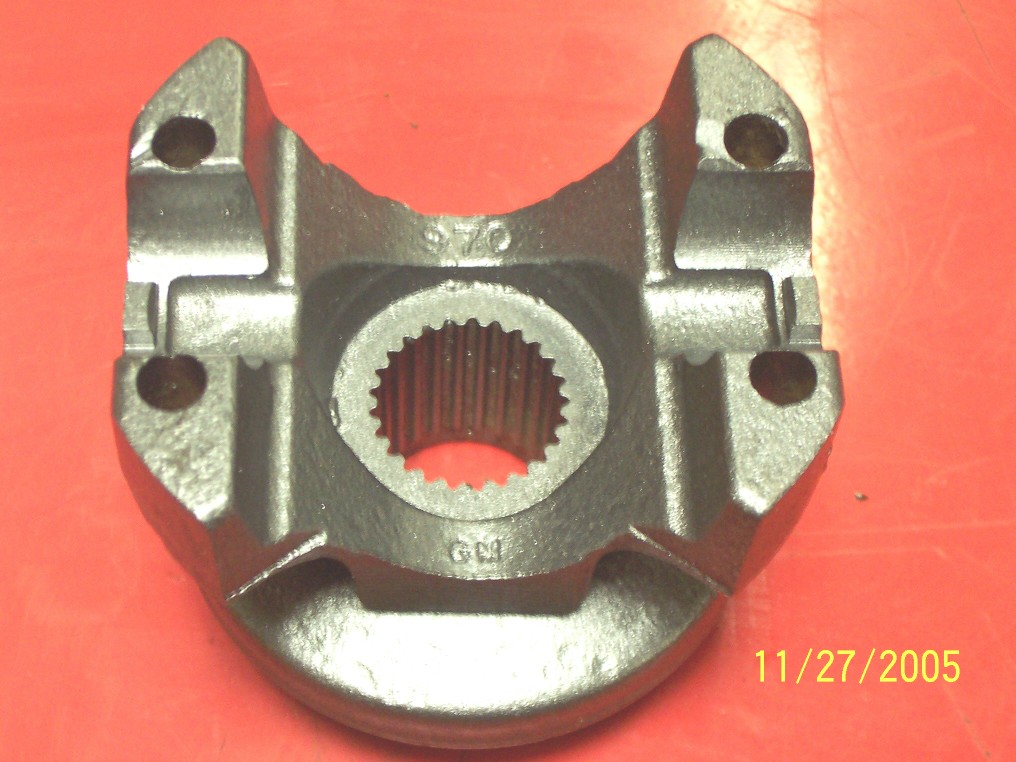

| Pinion Spline | 25 |
| Pinion Diameter | 1.438 |
| Axle Shaft Diameter | 1.400 |
Supported Cars
| Car | Year |
| Camaro | 67-69 |
| Impala | 65-70 |
| Chevy II / Nova | 65-71 |
| Chevelle Monte Carlo El Camino | 65-72 |
Rebuild Kit
| Part | Part Number |
| Carrier Bearing | LM501349 |
| Carrier Bearing (Race) | LM501314 |
| Inner Pinion Bearing | 89449 |
| Inner Pinion Bearing (Race) | 89410 |
| Outer Pinion Bearing | 86649 |
| Outer Pinion Bearing (Race) | 86610 |
| Pinion Seal | 8610 or 8611N |
Mega Axle Bearing Kit
| Part | Part Number |
| Axle Bearing | 5707 |
| Axle Seal | 8660S |
